In HVAC systems, correct duct design is important for efficiency, energy savings, and proper airflow. Duct surface area is an important parameter during duct fabrication and installation.
Knowing the exact duct surface area helps with sheet metal requirements, insulation material, cost estimation, and heat gain/loss analysis.

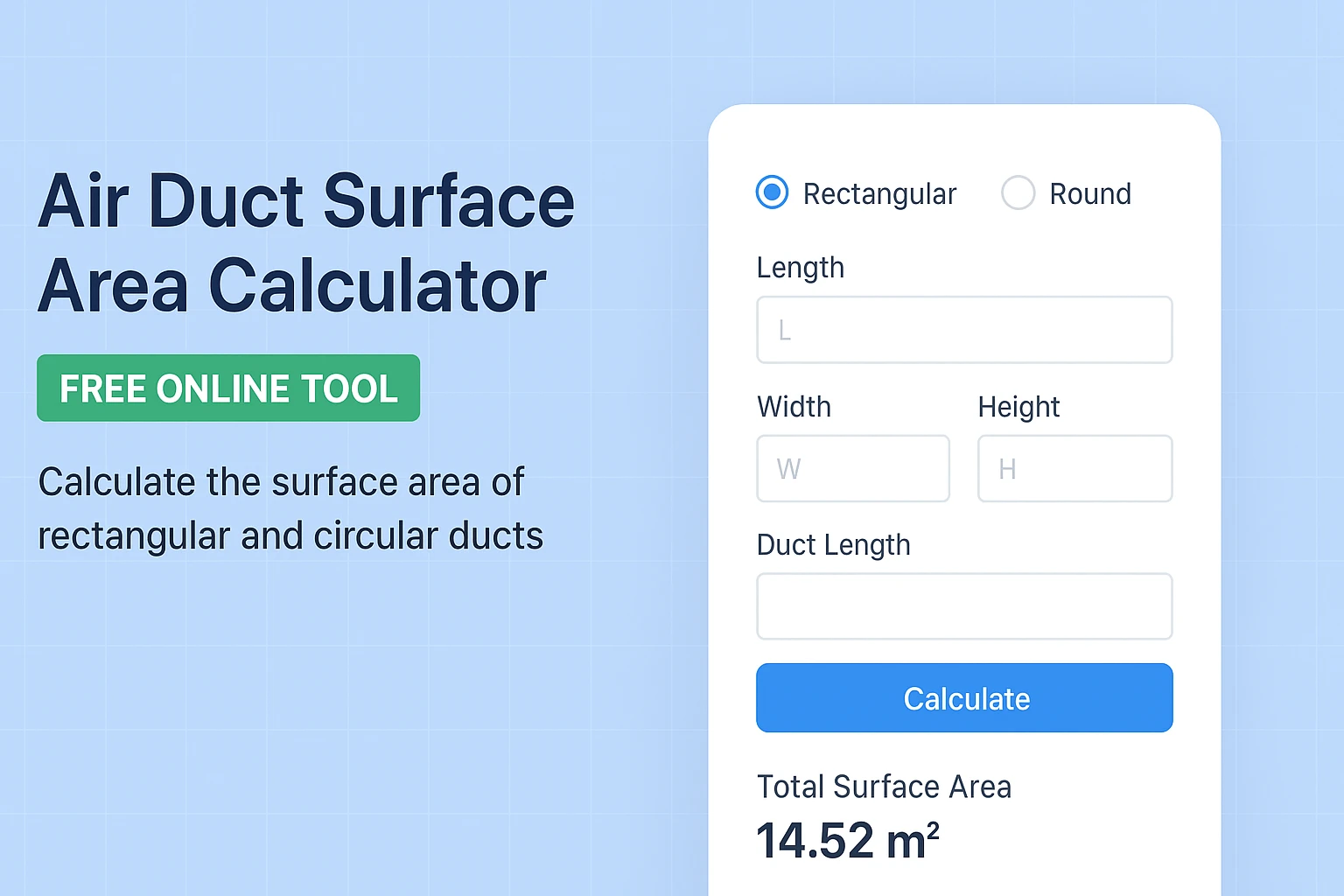

To make this task easier, we have created Air Duct Surface Area Calculator – a free and easy-to-use online tool that quickly tells you the total surface area of rectangular or circular ducts.
This calculator takes inputs such as the shape of the duct (rectangular or round), dimensions (length, width, height, or diameter), and the length of the duct.
Based on these details, it instantly provides the total duct surface area in square meters (m²) or square feet (ft²). That’s why it’s an essential tool for engineers, contractors, and fabricators who work on HVAC projects.
Why is Duct Surface Area Calculation Important?
When designing or fabricating ducts, knowing the exact surface area is critical for several reasons:
- Sheet Metal Requirement: Helps determine how much galvanized iron (GI) or aluminum sheet is needed.
- Insulation Estimation: Useful for calculating insulation material like glass wool, nitrile, or rockwool.
- Cost Planning: Prevents overestimation or shortage of material.
- Energy Efficiency: Proper insulation reduces heat loss/gain, improving system performance.
- Project Accuracy: Supports precise budgeting, fabrication, and installation.
Benefits of Using This Tool:
- Accurate Calculation: Provides exact duct surface area instantly.
- Saves Time: Eliminates manual calculations and complex formulas.
- Fabrication Support: Ideal for contractors, fabricators, and engineers.
- Dual Units: Results available in m² and ft².
- Versatile Use: Works for rectangular and round ducts of any size.
- Cost-Efficient: Reduces material wastage and saves project cost.
How to Use the Air Duct Surface Area Calculator?
- Select duct type – Rectangular or Round.
- Enter the duct dimensions (L × W × H for rectangular / Diameter for round).
- Input the duct length.
- Click calculate – and get the total duct surface area instantly.
Who Can Use This Tool?
- HVAC engineers and consultants for system design.
- Fabricators and contractors for sheet metal and insulation planning.
- Project managers for budgeting and material estimation.
- Students and trainees learning duct design and HVAC basics.
With this free tool, you don’t need to rely on guesswork or complicated equations. Simply enter your duct details, and the Air Duct Surface Area Calculator will give you instant, accurate results – making HVAC duct design and material estimation faster, easier, and more reliable.
