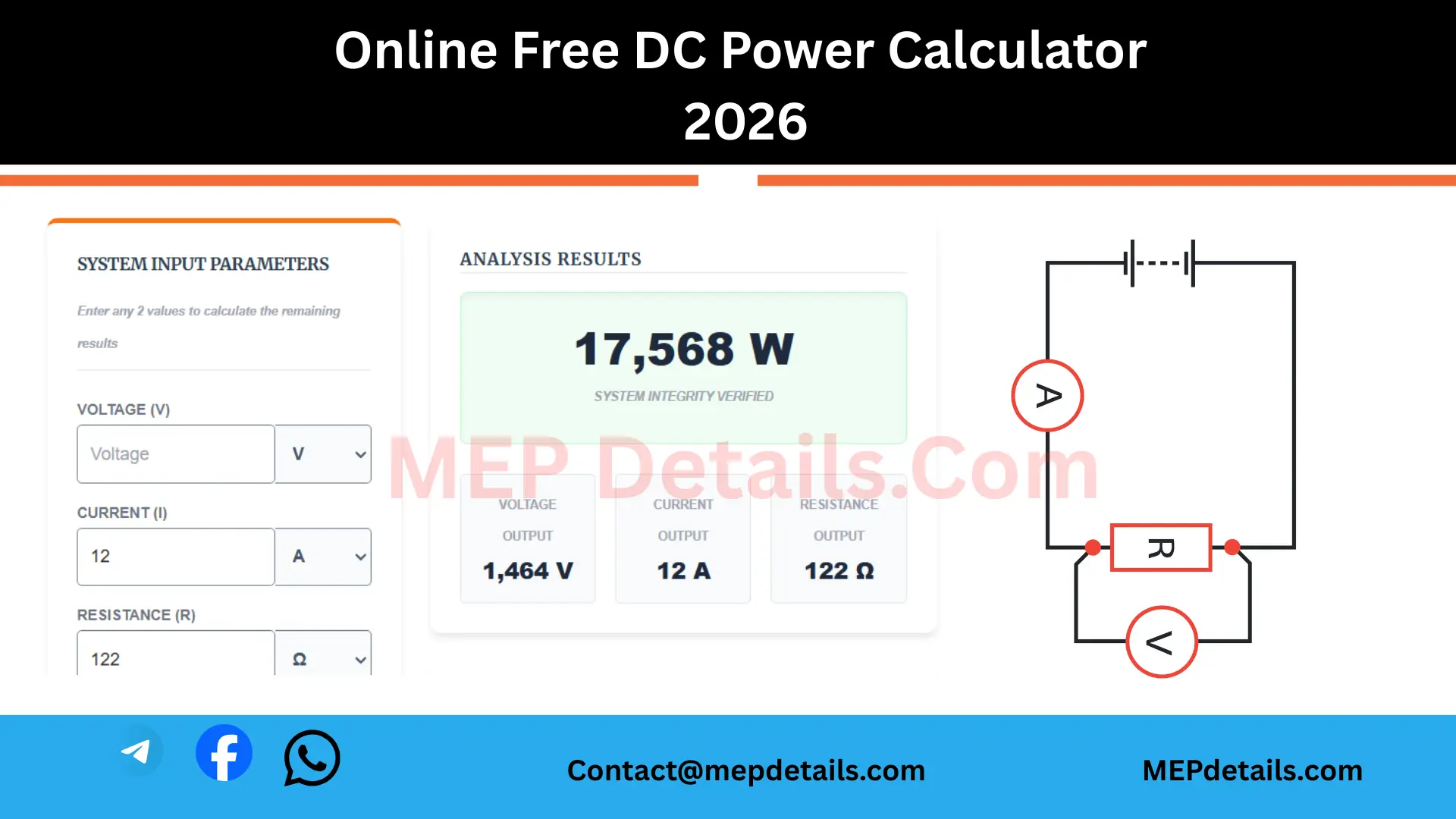

Technical User Manual
This DC Power Calculator tool is a specialized engineering utility designed to solve the interdependencies of Ohm’s Law and Watt’s Law.
utilizing a Smart Input logic, it allows MEP engineers to calculate any missing electrical parameter in a Direct Current (DC) system based on the known variables.
Step 1: Enter Your Known Values
Look at your circuit data. You need to enter any two of these:
- Voltage (V) – The pressure from the power source.
- Current (I) – The flow of electricity.
- Resistance (R) – How much the circuit resists the flow.
- Power (P) – The total energy being used.
Step 2: Choose the Correct Unit
Don’t worry about converting decimals (like 0.005 Amps). Just use the dropdown menus:
- For small electronics, use milli (m) or micro (μ).
- For standard home/office gear, use the base units (V, A, Ω, W).
- For heavy industrial power, use kilo (k) or Mega (M).
Step 3: Click Calculate
Once you press the Orange Calculate Button, the tool instantly:
- Fills in the two empty boxes.
- Turns the status box Green.
- Draws a graph showing how your power changes if the voltage moves up or down.
Step 4: Save or Print Your Report
If you need this for a project file or to show a client:
- Click Print PDF.
- The tool automatically hides the input boxes and buttons, leaving you with a clean, professional engineering report branded with mepdetails.com
Summary of Steps (The Easy Way)
| Action | What to do |
| Input | Type numbers into any 2 fields. |
| Adjust | Set the Units |
| Run | Press Calculate. |
| Result | Read the Calculated Outputs and check the Graph. |
| Finalize | Use Print PDF for a professional record. |
Pro for Engineers
The graph is the most important part! It shows you the “Safety Margin.” If you see the Power (Watts) rising sharply on the graph as Voltage increases, it reminds you to check if your components can handle the extra heat.
